Evaporator working Principle
An air Conditioner's coil also called the evaporator core is the part of the system where the refrigerant absorbs heat. As the air conditioner runs the compressor pulls cold low-pressure liquid refrigerant through
the tubing in the evaporator coil.
The Evaporator works the opposite of the condenser here refrigerant liquid is converted to gas absorbing heat from the air in the compartment. This causes the refrigerant to absorb heat from the warm air and reach it's low boiling points rapidly. The refrigerant then vaporizes absorbing the maximum amount of heat.
Usual defects in Evaporator
As you can see the compressor's is integral to the operation of the AC. Therefore a malfunctioning AC will lead to cooling problems. Below are some common problems that afflict AC evaporators.
Dirty Coils
Debris accumulated over the evaporator coils prevents the transfer of heat from the warm air to the refrigerant. The accumulated debris acts as an insulation material that prevents heat exchange.
This means that your AC will be blowing warms instead of cool air.
Frozen Coils
ice accumulated over the evaporator coils reduces the volume of the air flowing over the coils. The ice
also absorbs some of the heat instead of the heat getting absorbed into the refrigerant. This also reduces
the cooling capacity of the AC.
Coil Damage
Damage to the coil reduces the surface area of the cooling of the evaporator. Coil damage can also lead
to a refrigerant leak and the evaporator needs the refrigerant to cool the car.
Signs to look out for
You need to be on the lookout for evaporator malfunctions. Below are some of the signs to look out for:
- Impaired Cooling
- Ice and frost over the evaporator coil
- Signs of physical damage to the AC coils
- Long AC runtime
- Water leak near the evaporator

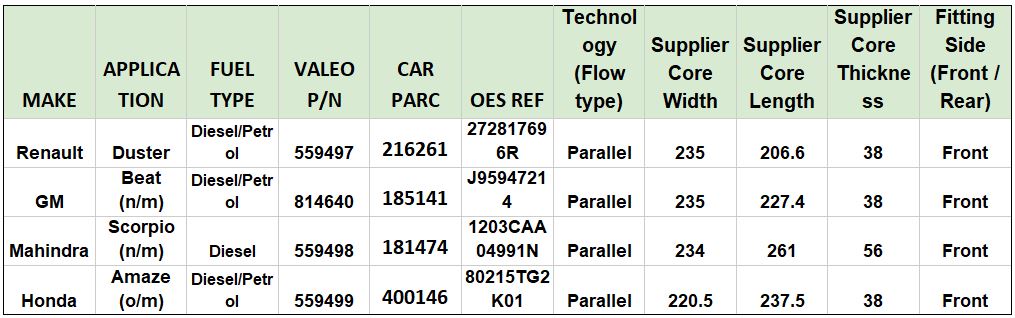

Valeo a global leader in Thermal solutions introduces 4 new Evaporator part references.
*(n/m)-new Modal, (o/m) Old Modal

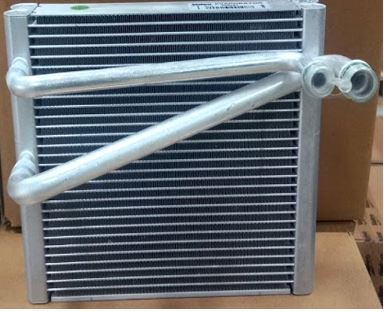

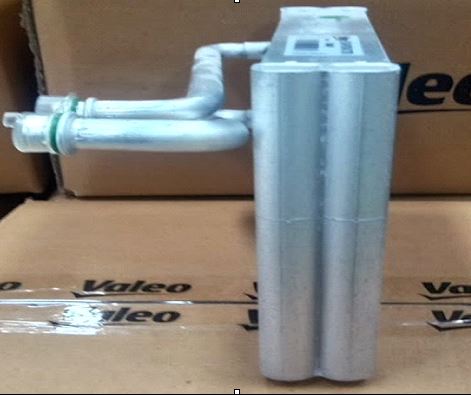

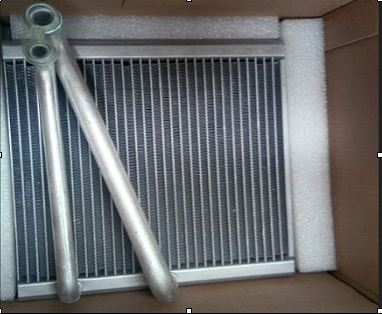

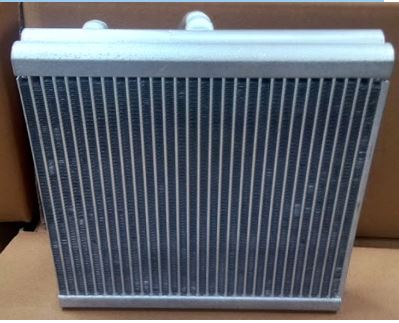

Renault Duster Valeo Evaporator

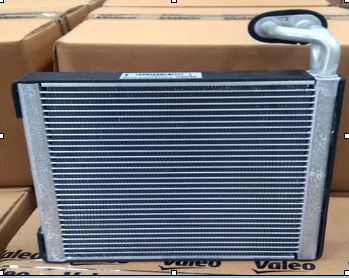

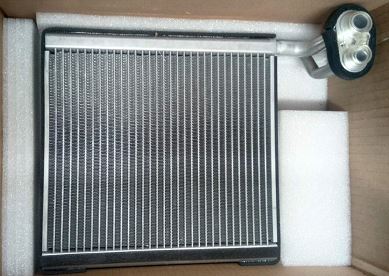

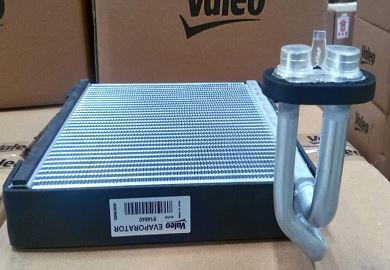

GM Beat Valeo Evaporator

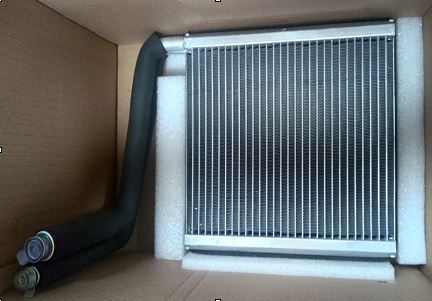

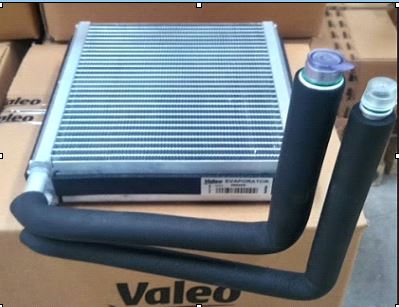

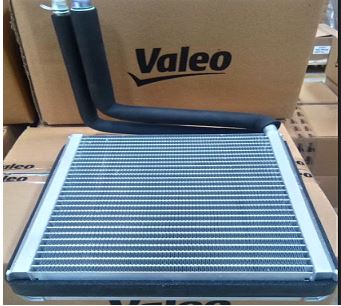

Mahindra Scorpio Valeo Evaporator
Honda Amaze Valeo Evaporator
Valeo is taking up the challenge of a fast growing market and more demanding operations in workshop.
making mechanics day to day work easier is the core of the valeo strategy and goes through delivering
the right coverage and providing clever services.
